2000 Gallon Tank

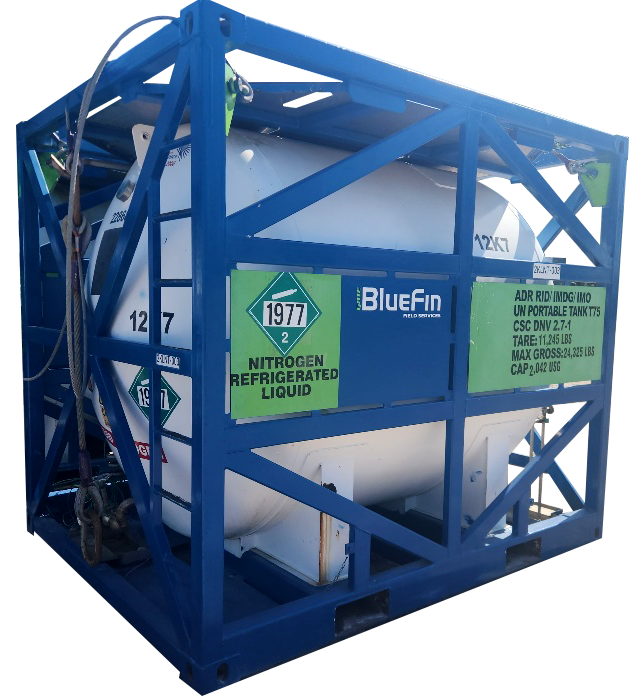

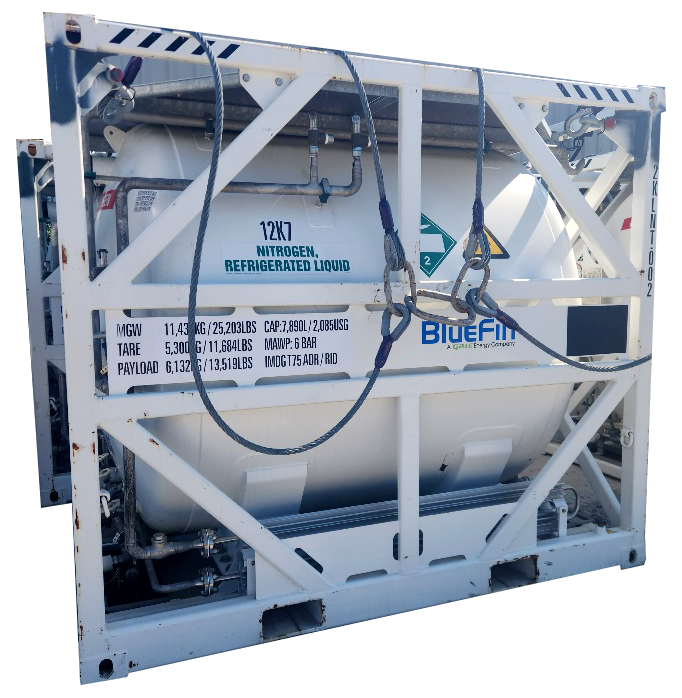

Vacuum Insulated Portable Tank
Product Description
This portable tank has approvals for road, rail & sea transport. It also has CSC, DNV 2.7-1 and ISO 10855 approvals and is designed, manufactured and tested for storing and transporting liquid nitrogen.
Benefits & Applications
High vacuum super-insulation, stacking capability 9 units high to ISO 1496-3 (192,000 kg max).
Integral pressure building system.
Lower roof plate to allow stacking with slings/shackles remaining in situ.
Ergonomically designed pipework layout.
Other Information

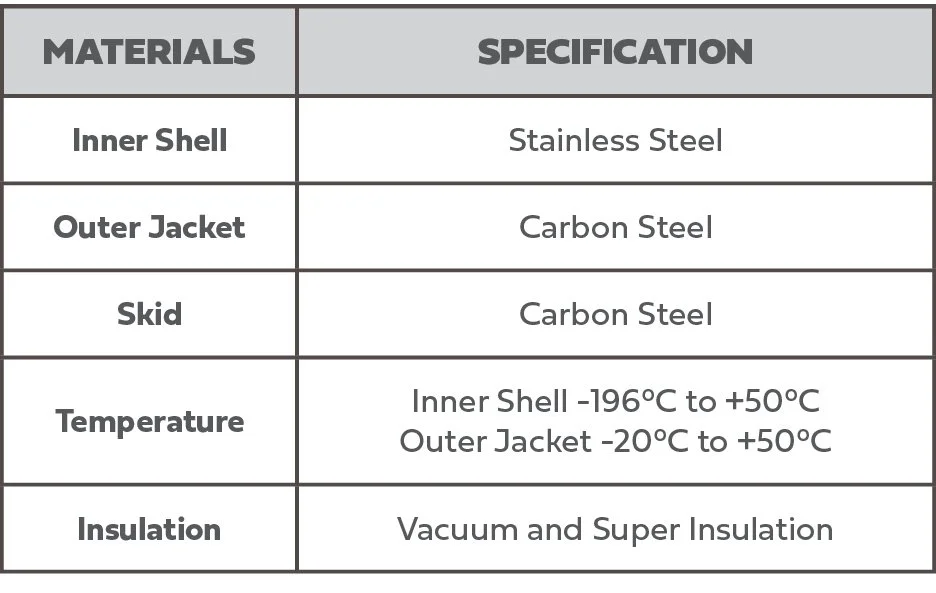

General Specifications
Max Capacity: 2,000 Gallons
Dimensions: 118” L x 96” W x 102” H
Empty Weight: 11,244 LBS
Max Gross Mass: 24,325 LBS
Slings
Slings and shackles. Approved to all relevant codes including DNV 2.7-1.
