3000 Gallon Tank

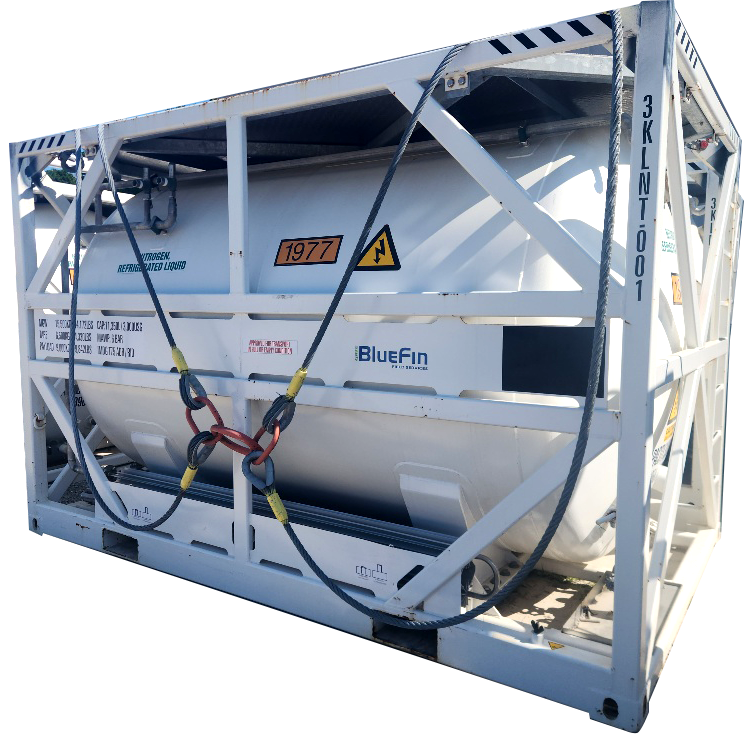

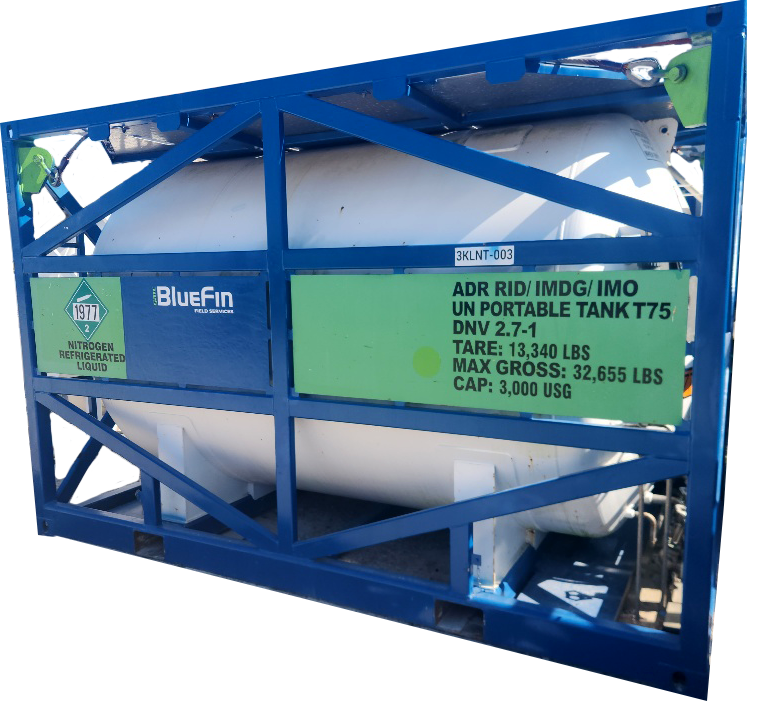

Vacuum Insulated Portable Tank
Product Description
This portable tank is designed and manufactured in accordance with DNV 2.7-1 and ISO 10855. The portable tank has approvals for road, rail and sea transport and is used for nitrogen services. The tank also has a working pressure of 3.1 bar and can be used for the transport of liquid nitrogen.
Benefits & Applications
High vacuum super-insulation.
Integral pressure building system.
Lower roof plate to allow stacking with slings/shackles remaining in situ.
Ergonomically designed pipework layout.
Other Information

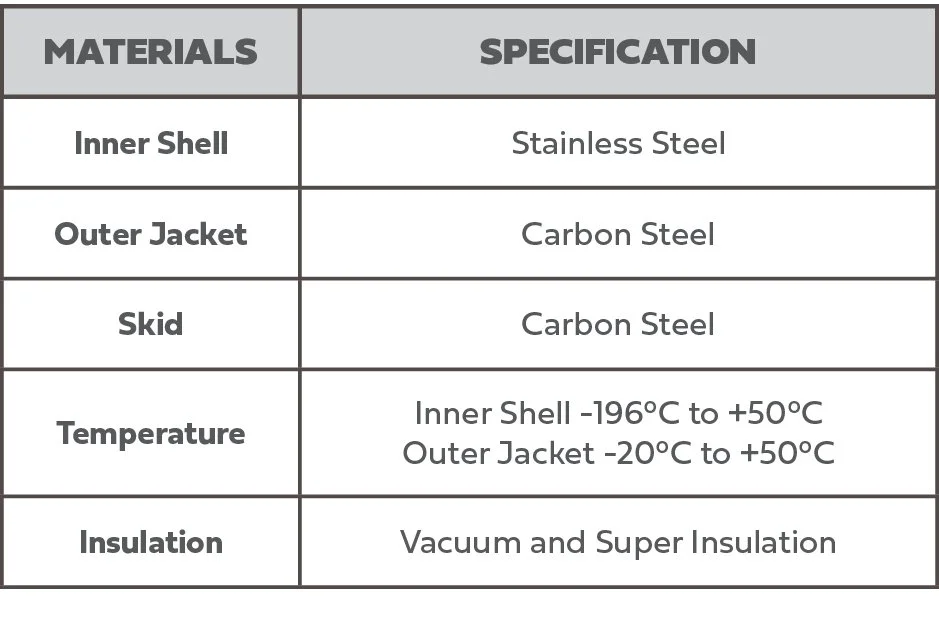

General Specifications
Max Capacity: 3,000 Gallons
Dimensions: 156” L x 96” W x 102” H
Empty Weight: 13,438 LBS
Max Gross Mass: 32,654 LBS
Slings
Slings and shackles. Approved to all relevant codes including DNV 2.7-1.
