HP550

Diesel Driven Triplex Pump


Product Description

The Bluefin HP550 pump is an air-cooled Deutz diesel-driven Hydroplex pump. The unit has a 100-gallon onboard water tank used for hydro testing and can pump other fluids using an external feed pump. The standard units are designed with 10,000 lbs. or 15,000 fluid ends. Special requirements that require higher pressures can be accommodated by the installation of 20,000 fluid end components. Each unit has an integral hose reel that holds 100 feet of test hose with Yale fittings.

Benefits & Applications

  • Designed to be a stand-alone unit.

  • Digital stroke counter used for GPM calculations.

  • Forklift pockets for easy maneuvering around the job site.

  • Containment skid under pump and engine.

  • Spares parts box with filters, belts, pump parts, fluids for

    field servicing.

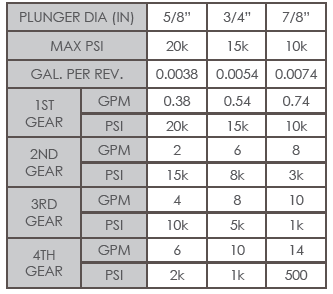

Pump Output Specs

Maximum continuous input RPM = 1430 RPM.

Maximum intermittent input RPM = 2200

RPM (30-minute maximum time run cycles relieved by a 15-minute shut down thereafter).

Due to power losses and other contributing factors, maximum duty points above may not be achievable in every field situation.

General Specifications

  • Frame: Galvanized Steel

  • Weight: 5,000 lbs

  • Dimensions: 108”L x 46”W x 82”H

  • Shackles: Crosby 3/4”

Slings

  • Four Leg 6ft w/ 1” Master Link and

  • shackle lock thimble ends
