HVU-A
BlueFin Model A filtration units are designed for high volume flushing and testing of production, vessels, tanks and large piping systems.
Using Pall corporation NXA Absolute filters, BlueFin can provide filtration to customer specified NAS 1638, SAE 4059F or ISO 4406 classification.
HFU-A-01
BlueFin Model A filtration units are designed for high volume flushing and testing of production, vessels, tanks and large piping systems
Using Pall corporation NXA Absolute filters, BlueFin can provide filtration to customer specified NAS 1638, SAE 4059F or ISO 4406 classification.
PFS-A
BlueFin Model A Filter Skids are designed for low pressure with high flow capabilities to filter fluids used in umbilicals, subsea components, production and completion equipment and tools.
The diaphragm pump offers high volume delivery even at low air pressures with a maximum output of 13 gallons per minute with a flooded inlet. Pneumatic Filter Skids (PFS) can be used for filtering oil, water, glycols or other chemicals.

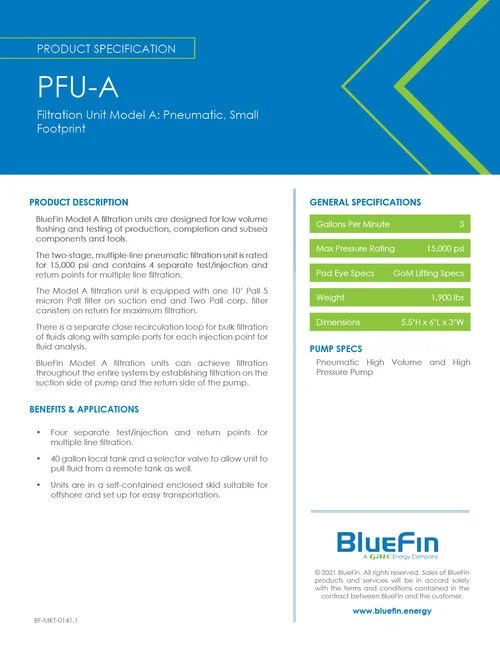

PFU-A
BlueFin Model A filtration units are designed for low volume flushing and testing of production, completion, and subsea components and tools.
The two-stage, multiple-line pneumatic filtration unit is rated for 15,000 psi and contains 4 separate test/injection and return points for multiple line filtration.
PFU-B
BlueFin Model B filtration units are designed for low volume flushing and testing of production, completion, and subsea components and tools.
The two-stage, multiple-line pneumatic filtration unit is rated for 30,000 psi and can produce up to 3 gallons per minute. It contains three (3) separate test/injection and return points for multiple lines filtration.
IPU-A
BlueFin Model A filtration units are designed for high pressure, medium to low volume pumping of harsh chemicals.
The HDP-72 Hammelamnn pump is built for continuous duty and is assembled with 22m diameter ceramic plungers, incorporating the packing less, “dynamic seal assembly” in the high-pressure end.
