BlueFin Specification
Written By GATE Energy

Diesel Driven Triplex Pump

Product Description

The Bluefin GD-250 Triplex pump is powered by Caterpillar diesel L-6 engine. The unit is a dual skid configuration to reduce the lifting weight. These pumps are used for pipeline filling, pigging, volume hydrotesting and chemical injection / treating. Each unit is shipped with a spare parts box with items such as engine and pump filters, fluids and fan belts. The GD-250 unit does not pull a suction and therefore it needs an adequate gravity feed or charge/supply pump for it to operate as designed.

Benefits & Applications

  • Designed to be a stand-alone unit.

  • Digital stroke counter and flowmeter used for GPM

    calculations.

  • Forklift pockets for easy maneuvering around jobsite.

  • Containment skid under pump and engine.

  • Spares parts box with filters, belts, pump parts, fluids for

    field servicing.

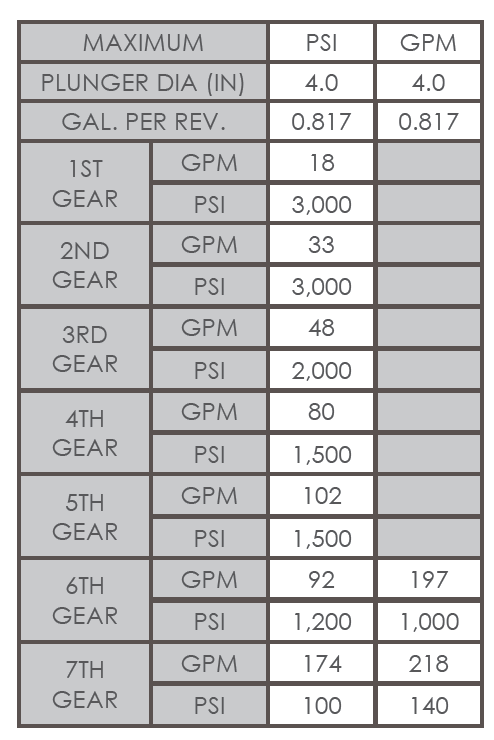

Pump Output Specs

Intermittent duty is a full maximum situation so that is why it is limited to 30 minutes on and 30 minutes off.

Refer to Operating Procedure for calculation of other Duty Periods and Pump Cycle Times.

Due to power losses and other contributing factors, maximum duty points above may not be achievable in every field situation.

4.0” flowrate measured with High Flow Valves installed in heads.

General Specifications

  • Frame: Steel

  • Weight: 10,000 lbs

  • Dimensions: 161”L x 76”W x 107”H

Slings

Single lift pad-eye with shackle
